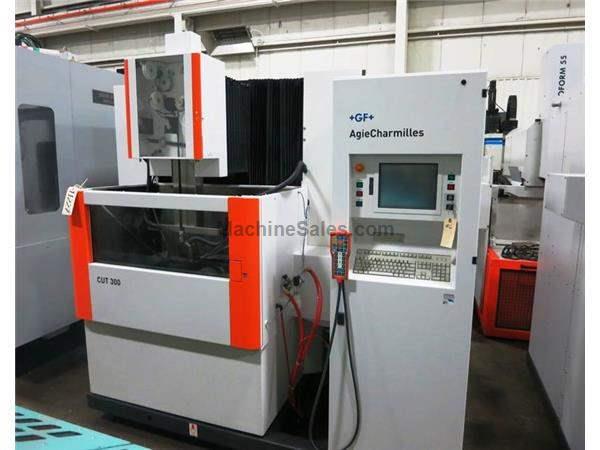

CHARMILLES ROBOFIL CUT300 5-AXIS CNC WIRE CUT (EDM) ELECTRICAL DISCHARGE - $RFQ

Item Number: #00080586
CHARMILLES ROBOFIL CUT300 5-AXIS CNC WIRE CUT (EDM) ELECTRICAL DISCHARGE

CHARMILLES ROBOFIL CUT300 5-AXIS CNC WIRE CUT (EDM) ELECTRICAL DISCHARGE
Stock Code:  11227
Price: $RFQ
Subcategory:

Wire EDM

Year of Manufacture:  2011
Condition: Used
Play YouTube Video

CHARMILLES ROBOFIL CUT300 5-AXIS CNC WIRE CUT (EDM) ELECTRICAL DISCHARGE MACHINE

General Specifications
Machine:
Type of machining (Submerged) Wire-cutting
Dimensions for complete equipment 102.3"x102.36"x92.13"
Total weight of equipment (without dielectric) 7275 Lbs
Machining area:
Max. workpiece dimensions 47.24"x27.56"x15.75"
Max. workpiece weight 3307 Lbs
Dimensions of table 35.43"x23.62"
Floor to table distance 39.37"
Total volume of dielectric 317 gal.
X,Y,Z and U,V Axes:
X,Y,Z Travel 21.65"x13.77"x15.75"
U,V Travel 21.65"x13.77"
Rapid movement (X,Y and U,V Axes) 9.8 ft/min
Integrated collision protection Std. 5 Axes
Taper machining:
Max. Taper +/-45/15.75"
(Standard) +/-30/15.75"
Wire Circuit:
Wire diameter available 0.013"to0.003"
(Standard) 0.013"to 0.006"
Permissible weight-and-types of spool (ISO Stand) 3.52 to 17.6 lbs
Permissible weight-and types of spool (JIS Stand) 6.6 to 11 lbs
Automatic rethreading for wire 0.013 to 0.004"
Dieletric: Paper filters (option 4 cartridges) 2 cartridges CC High Speed Generator: Max. cutting speed 37.7 in/hour

Motor Specifications
Not Available

Equipped With
Charmilles CNC Controls
File management, AC CAM EASY, EDM-Expert, Operations Organizer
Integrated Documentation, Ethernet, USB Port, 6 KW Booster & Additional Filtrations

Serial Number 519
Year 2011
Location PROSPECT HEIGHTS, IL
