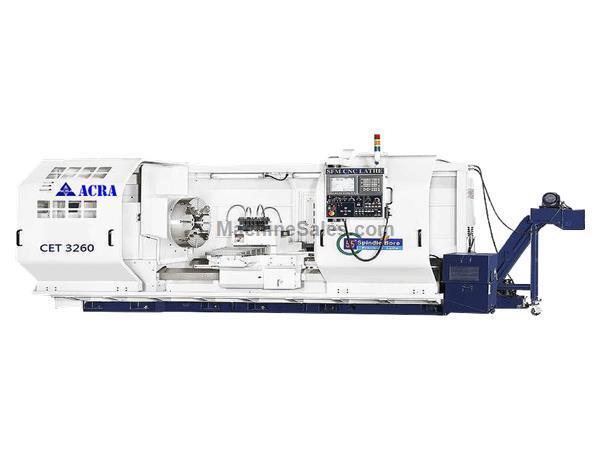

<p class="MsoNormal"><strong>32" X 160" ACRA MODEL CET32160 HOLLOW SPINDLE CNC FLAT BED LATHE WITH FANUC OITF CONTROLLER</strong></p>
&bull; One piece box type machine base made of Meehanite castings, all bedways are hardened and ground which provides high hardness, rigidity and durability.<br />&bull; Integrate design of machine body and electrics, convenient for operation and maintenance.<br />&bull; Large Spindle Bore supported by 3-point precision bearing which is suitable in accuracy and heavy cuttings. 4&rdquo;, 6&Prime;, 9&Prime; is an option.<br />&bull; Spindle speed is controlled automatically by hydraulic system, 4 stages variable speed changing will ensure full horsepower output even under low spindle RPM.<br />&bull; Special Coolant System for headstock will reduce the temperature of spindle.<br />&bull; New Design Tailstock will make the tailstock slide more smoothly and eliminate the wearing as well as provide security in operating. This innovation includes a security devise to ensure operator safe even under a wrong operating.<br />&bull; C-Axis (Live Tooling) is able to make spindle high precision index position, fitted with power tooling turret, will complete with &ldquo;turning&rdquo; and &ldquo;milling capacities&rdquo;.<br /><br />Fanuc Series Oi-TF Controller features:<br />&bull; Arbitrary Speed Threading &amp; Thread Repair.<br />&bull; Threading Retract.<br />&bull; Balanced Cut.<br />&bull; Dual-Path Synchronization.<br />&bull; Tool-Nose Radius Compensation.<br />&bull; Multiple Repetitive Cycles.<br />&bull; Canned Cycles for Drilling.<br />&bull; High-Speed Rigid Tapping.<br />&bull; Standard, Multi-Lead &amp; Variable Lead Threading Cycles.<br />&bull; Polar Coordinate Interpolation for C-axis / Y-axis / Live Tools with Cutter Radius Compensation.<br />&bull; G54-G59 Plus 48 Additional Workpiece Coordinate Offsets.<br />&bull; Lathe G-code systems A/B/C.<br />&bull; Chamfering / Corner R.<br />&bull; Direct Drawing Dimension Programming.<br />&bull; Programmable Data Input.<br />&bull; Threading Cycle.<br />&bull; Polar Coordinate Command.<br />&bull; 400 Tool Off sets Pairs.<br />&bull; Tool Life Management.<br />&bull; Tool Length Measurement.<br />&bull; Scaling.<br />&bull; Helical Interpolation.<br />&bull; Mirror image for Double Turret.<br />&bull; Polygon Turning.<br />&bull; High-Speed Skip for Probing.<br /><br />Specifications:<br />Swing Over Bed:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 32&rdquo;<br />Swing Over Cross Slide:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;21.6&rdquo;<br />Width of Bed:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 18&rdquo;<br />Distance Between Centers:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 160&rdquo;<br />Spindle Bore:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 4&rdquo;<br />Spindle Nose:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;A2-8<br />Range of Spindle Speeds:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;3 &ndash; 1200 RPM<br />Number of Spindle Speeds:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 2<br />Turret: Number of Tool Stations:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; H4/ H6/ V8<br />O.D. Tool Shank Size:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 1&rdquo; x 1&rdquo;<br />I.D. Tool Shank Diameter:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;1.57&rdquo;<br />Cross Slide Travel (X-Axis):&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;15.7&rdquo;<br />Longitudinal Travel (Z-Axis):&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;157.4&rdquo;<br />AC Servo Motor:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;X-Axis (4 HP)/ Z-Axis (5.4 HP)<br />Rapid Feed:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;X-Axis (393 ipm)/ Z-Axis (315 ipm)<br />Cutting Feed Rate:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 0.0004&rdquo;~20&rdquo;/rev.<br />Tailstock:<br />&nbsp; &nbsp; &nbsp;Quill Diameter:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;3.47&rdquo;<br />&nbsp; &nbsp; &nbsp;Quill Travel:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;9&rdquo;<br />&nbsp; &nbsp; &nbsp;Taper of Center:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; MT#5<br />Motor:<br />&nbsp; &nbsp; &nbsp;Main Spindle (cont.):&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 20 HP<br />&nbsp; &nbsp; &nbsp;Main Spindle (30 min. rating):&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 25 HP<br />&nbsp; &nbsp; &nbsp;Hydraulic Pump:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;2 HP<br />&nbsp; &nbsp; &nbsp;Coolant Pump:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 0.5 HP<br />Voltage:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 220V~3 Phase<br />Weight&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 25,340 lbs
<div>Dimensions&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;315 &times; 88 &times; 88 in</div>
<br /><br />Standard Equipment:<br />&bull; Controller FANUC OiTF.<br />&bull; FANUC OiTF Controller with Manual Guide i.<br />&bull; Operating, Electric, Controller &amp; Parts Manual.<br />&bull; Color LCD 10.4&Prime;.<br />&bull; MPG Hand Wheel.<br />&bull; Spindle Motor 20/25 HP (35 kVA).<br />&bull; Spindle Bore 4&Prime; (A2-8).<br />&bull; Hydraulic System.<br />&bull; Auto Lubrication System.<br />&bull; Head Stock Coolant System.<br />&bull; Air Conditioner.<br />&bull; Tailstock Movable by Engaging with carriage.<br />&bull; H4/H6/V8 Tool Turret.<br />&bull; Work Light.<br />&bull; Rear Chip Conveyor &amp; Chip Cart.<br />&bull; Two Chuck Ready Spindle.<br />&bull; Double Door &amp; Splash Guard.<br />&bull; Center and Center Sleeve.<br />&bull; Live Center.<br />&bull; Toolbox with Adjusting Tool.<br />&bull; Foun

This machine is listed for sale by Blumberg Machinery located in Bannockburn, Illinois
