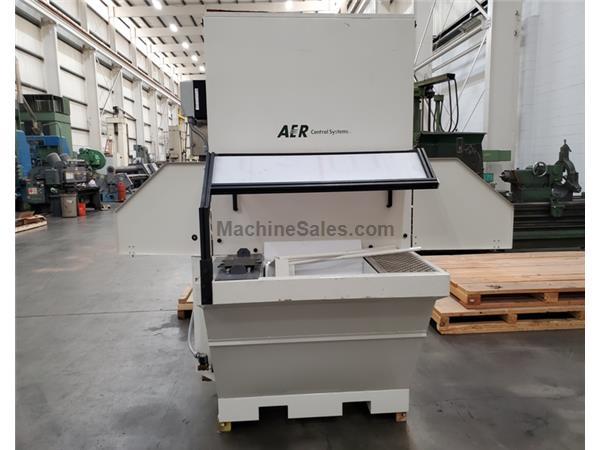

AER DOWN DRAFT BENCH -UNUSED
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $12,500.00

HMC Stock # 23089-P
Machine Serial No.: 12861A
Machine Model No.: HAZD24x48
Assy: HAZ27250-01
New Date: November 2019 BUT IS UNUSED Several Available

BROCHURE DESCRIPTION:
AER Control Systems AER HAZDUST Wet Downdraft Tables are designed to provide efficient, 97% at 5 microns, cost effective control of all flammable and non-flammable metal dust contaminants generated from a variety of manufacturing and process applications. Typically used for control of moderate to heavy concentrations of contaminants, the HAZDUST series tables can be used for grinding, polishing, and dry buffing. The auto water fill with low level shutoff system can minimize the maintenance. Washable high efficiency mist eliminator provides reduced filter replacement costs. The AER HAZDUST will help with compliance to local OSHA and NFPA regulations by drawing contaminants away from the operator’s breathing zone and reducing the flammability concerns with metals such as aluminum and titanium. The AER HAZDUST unit comes standard with "Dust Blocker Technology", stainless steel construction on wetted surfaces, direct drive non-sparking blower and TEFC motor, polypropylene mist eliminator, auto water level control with low level shutoff, and a factory pre-wired control panel. Table top air velocities are a minimum of 325 or more feet per minute. Typical table top loads for the bench are 75 lbs. per square foot.

SPECIFICATIONS:
Table Area: 24" x 48"
Electrics: 3 HP, Wired for 3 Phase, 60 Hz, 460 Volts, 38 Amps

FEATURES:
Airflows Range from 2000 to 4800 CFM Depending on Table Top Size and Motor Horsepower
Direct Drive Non-Sparking Aluminum Backward Curved Blower
Washable Polypropylene Mist Eliminator
Aluminum Non-Sparking Grating Table Top Work Surface
Automatic Water Level Control with Low Level Shutoff
High Level Shutdown Control
Factory Pre-Wired Control Panel
34" Table Top Height
Hinged Side Panels
Table Designed for Handicap Accessible
Overall Size: 55" LR x 54" FB x 93" High x ?? Lbs.

This machine is listed for sale by Hildebrand Machinery Co Inc located in York, Pennsylvania
