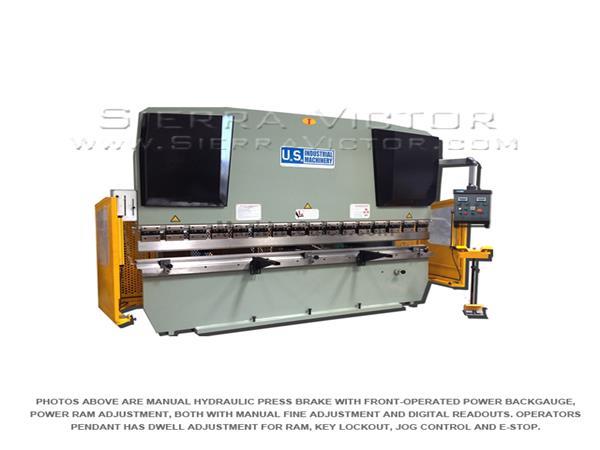

U.S. INDUSTRIAL Hydraulic Press Brake with Front Operated Power Backgauge and Power Ram Adjust USHB125-10HM

CALL FOR AVAILABILITY AND BEST PRICING!

FEATURES:
Power Front Operated Back Gauge, motorized with fine adjustment handwheel
Power Ram Depth Control, motorized with fine adjustment handwheel
Digital Displays for backgauge position and ram position
All Steel Construction
Sick 4000 Light Curtain
Ram accepts standard American Tang tooling, 1/2” x 5/8”
Space between Ram Tool Clamps allows for deep box bending
Bed has slot for standard American Tang tooling
Bed also has capture clamps for tooling without tang
Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel (Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. ­There is NO warranty on these items.)

EQUIPPED WITH:
Sick 4000 Light Curtain

SPECIFICATIONS:
Working pressure: 125 tons
Length of working table: 125.9"
Distance between housings: 106.2"
Throat depth: 12.5"
Stroke adjustment of ram: 2.36"
Ram travel: 5.5"
Open height: 15.9"
Rapid Ram Travel Speed: 2.4”/sec.
Rapid Ram Retreat Speed: 2.0”/sec.
Pressing Speed: Dependent on Tool Load
Backgauge Travel: 24"
Hydraulic oil capacity: 79 gals.
Motor: 10 HP
Dimensions: 148" x 64" x 101"
Weight approx.: 18,739 lbs

OPTIONAL ITEMS:
FiesslerAkas II Laser Guarding
Pilz PSENvip LED Safety Guarding System
Training in our Memphis, TN Facility
Training at customer site, less than 300 miles from Memphis
Training at customer site, more than 300 miles from Memphis
Training outside continental USA

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

This machine is listed for sale by Sierra Victor Industries located in Port Orange, Florida
