MACHINE# 12674


MANUFACTURER: NATIONAL STANDARD CORP.

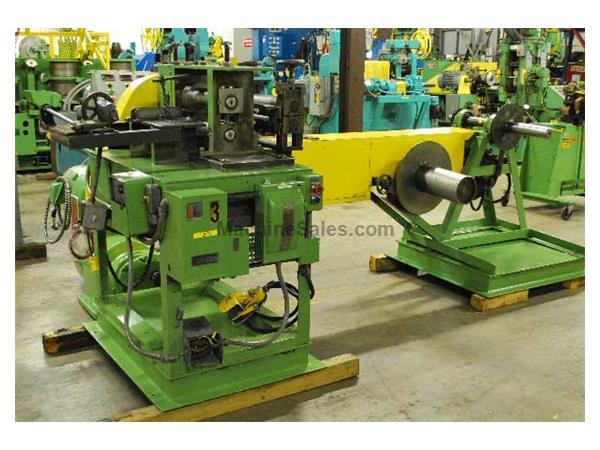

TYPE SLITTER: PULL THRU SLITTING LINE WITH DUAL TAKE-UPS

ARBOR SIZE: 10" (254mm) x 2 1/2" (63.5mm)

CAPACITY:
THICKNESS RANGE: 0.005" (.127mm) - 0.062" (1.6mm)
NUMBER OF CUTS:
9 CUTS 0.005" (.127mm)
6 CUTS .062" (1.6mm)

PAYOFF:
TYPE: NON-DRIVEN EXPANDING MANDREL
MANDREL DIAMETER: 12" (305mm) DIA. x 12" (305mm) FACE
TYPE EXPANSION: MANUAL
CENTERLINE HEIGHT: 36" (915mm)
BRAKE FOR BACK TENSION: MANUAL
MAXIMUM COIL O.D.: 36" (915mm)

SLITTER HEAD:
DRIVE: DRIVEN FROM MOTOR ON RECOILER
ARBOR SIZE: 2 1/2" (63.5mm) DIA. x 10" (254mm) FACE
ENTRY SIDE GUIDES: MANUAL
VERTICAL ARBOR ADJUSTMENT: MANUAL
KNIFE SEPARATION: WOODEN FINGERS
EXIT PINCH ROLLS: 3 1/4" (95mm) DIA. x 12 1/2" (317mm) FACE
STRIP COUNTER: DURANT MODEL 5-H-1-R-CL, S/N 262
KNIFE O.D.: 5 1/2" (140mm)
SPACER O.D.: 3 3/4" (95mm)

TAKE-UPS:

WINDER No. 1:
6 1/2" (165mm) DIA. x 14" (355mm) FACE WIDTH x 16" (406mm) MAX. O.D.

WINDER No. 2:
2 3/4" (70mm) SHAFT DIA. x 13" (330mm) FACE

WINDERS USE SEPARATOR DISCS

DRIVE MOTOR:
POWERS BOTH WINDERS AND THIS SLITTER HEAD

CAPACITY: 15 HP, 44/22 AMPS, 1760 RPM, 230/460 VOLTS
REEVES VARIABLE SPEED DRIVE
MODEL No.: MOTODRUM
SIZE: 8441

IDENT. No.:
R356784-00-PQ
079189-1/2-FE

BELT: 605036-29-K
RATIO: 2.8 TO 1
OUTPUT RPM: 182-1430 RPM

OVERALL LENGTH OF SLITTING LINE: 11.3 FT. (3.44m) PLUS PAYOFF

INCLUDES LARGE QUANTITY OF TOOLING


**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**

This machine is listed for sale by Machinery International Corp located in Woodbridge, Connecticut
