KNUTH MODEL MF 1 P MULTI-PURPOSE MILLING MACHINE - $RFQ

Item Number: #00154532

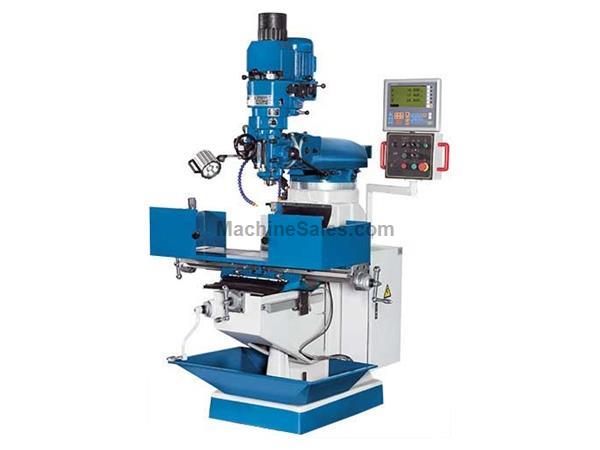

KNUTH MODEL MF 1 P MULTI-PURPOSE MILLING MACHINE

KNUTH MODEL MF 1 P MULTI-PURPOSE MILLING MACHINE
Stock Code:  16329
Price: $RFQ
Subcategory:

Miscellaneous Machinery

Manufacturer:  Knuth
Model:  MF 1 P
Condition: New

<p></p><div class="additional-attributes-wrapper table-wrapper table-responsive">

<table class="data table additional-attributes"><caption class="table-caption">Working Area</caption><tbody><tr class="mer_aaachb"><td>Table set up area</td><td>42x9 in</td></tr><tr class="mer_aaaaca"><td>Number of T-slots</td><td>3 positions</td></tr><tr class="mer_aaceeg"><td>T-slot (width x spacing)</td><td>0.63x2.5 in</td></tr></tbody></table><table class="data table additional-attributes"><caption class="table-caption">Travels</caption><tbody><tr class="mer_aaacih"><td>Travel X-axis</td><td>26.4 in</td></tr><tr class="mer_aaacii"><td>Travel Y-axis</td><td>11 in</td></tr><tr class="mer_aaacij"><td>Travel Z-axis</td><td>15 in</td></tr></tbody></table><table class="data table additional-attributes"><caption class="table-caption">Vertical Milling Head</caption><tbody><tr class="mer_aabfab"><td>Spindle speeds</td><td>(16) 80 - 4,500 rpm</td></tr><tr class="mer_aaajca"><td>Quill stroke</td><td>5 in</td></tr><tr class="mer_aaajec"><td>Spindle mount</td><td>ISO 30 </td></tr><tr class="mer_aaaefb"><td>Throat</td><td>7 - 19 in</td></tr></tbody></table><table class="data table additional-attributes"><caption class="table-caption">Feed</caption><tbody><tr class="mer_aaacji"><td>Feed speed X-axis</td><td>0 in/min</td></tr><tr class="mer_aaaegd"><td>Quill feeds</td><td>(3) 0,04; 0,08; 0,15 in/R</td></tr><tr class="mer_aabfga"><td>Console travel (Z-axis)</td><td>- in</td></tr></tbody></table><table class="data table additional-attributes"><caption class="table-caption">Drive Capacity</caption><tbody><tr class="mer_aaabfj"><td>Motor rating main drive</td><td>3 Hp</td></tr></tbody></table><table class="data table additional-attributes"><caption class="table-caption">Measures and Weights</caption><tbody><tr class="mer_aaaaac"><td>Overall dimensions (length x width x height)</td><td>79x63x83 in</td></tr><tr class="mer_aaabai"><td>Weight</td><td>2,420 lbs</td></tr></tbody></table> <table class="data table additional-attributes" id="product-attribute-specs-table">
<tbody>
<tr>
<td class="col" scope="row">Part No.</td>
<td class="col data" data-th="Part No.">301219</td>
</tr>
</tbody>
</table>
</div><p></p><p>
</p><div class="col-xs-12 product attribute description">
<div class="value">
<ul><li>Speed is changed by shifting the 2-step drive motor transmission, or by selecting the desired gear ratio at the drive belt (4 speeds per gear)</li><li>Automatic table feed, type TV 1000 in X and Y, can easily be retrofitted</li><li>Head swivels on 3 axes:
swivel r + l ± 90¡;
tilt forward + reverse ± 45¡;
rotation on the column ± 45¡</li><li>Dovetail guides, hardened, adjustable</li><li>3 automatic drill feeds</li><li>Manual coarse feed for quill, with change-over for manual fine feed</li><li>Quill with automatic micrometer depth stop</li><li>Spindle mount ISO 30</li><li>Reversing switch for forward reverse rotation</li><li>Central lubrication for spindle, nut and guides</li><li>Manual spindle brakes</li><li>Pneumatic tool clamping</li><li>3-axis position indicator, coolant system, and LED work lamp (included in standard equipment)</li></ul><p style="font-weight: bold;">3-axis position indicator</p><ul><li>More accuracy</li><li>Lower error rate</li><li>Increased productivity</li><li>Resulting in valuable time savings</li><li>For increased productivity</li><li>Easy to read display</li><li>Operator-specific features</li><li>Convenient keyboard layout</li><li>Resolution: 0.0004 / 0.0002"</li><li>Default coordinates</li><li>Axis position is maintained when display is turned off</li><li>Hole circle pattern calculation</li><li>Calculator function</li><li>Storage for 10 tools</li><li>Radius / diameter toggle</li><li>Mm/inch conversion</li><li>Easy expansion and maintenance-free operation</li></ul> </div>
</div>
<p></p><p></p><div class="col-xs-12 product attribute standardequipment">
<div class="value">
<ul class="supplies"><li>3-axis position indicator</li><li>pneumatic tool clamping</li><li>coolant system</li><li>central lubrication</li><li>vertical guide way cover</li><li>LED work lamp</li><li>operating tools</li><li>operator manual</li></ul> </div>
</div>
<p></p>
