Amada 3000 Watt Laser |
|
Stock Code: |
7619 |
Price: | $49,500 |
Subcategory: | Laser Cutters |
Wattage: | 3000W |
X axis travel: | 10' |
Year of Manufacture: |
1998 |
Manufacturer: |
Amada |
Model: |
Altair LCV-3015 |
Condition: | Used |

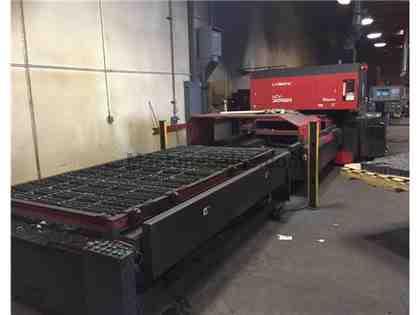

AMADA LASMAC ALTAIR LCV-3015, 3000 WATT FANUC, 5
WITH 3000 WATT FANUC RESONATOR AND FANUC 16L CONTROL
MAXIMUM SHEET SIZE: 5 X 10'
X-TRAVEL: 99
Y-TRAVEL: 61
Z-TRAVEL: 11.8
MAXIMUM POSITIONING SPEED: 1575 IPM
POSITIONING ACCURACY (+/-): 0.0004
MACHINE SIZE: 261
CONTROL SPECIFICATIONS
MODEL: 16LB CONTROL (FANUC)
CONTROL FUNCTION: X, Y, Z, T, B & C SIMULTANEOUS 3 AXIS LASER POWER CONTROL (CW, PULSE)
INPUT METHOD: FLOPPY DISK, MDI, EDIT, DNC
MMC FUNCTIONS: GEOMETRIC INPUT (METRIC ONLY), MAINTENANCE
MINIMUM COMMAND UNIT: 0.001" (X, Y, Z)
MINIMUM TRAVEL UNIT: 0.001" (X, Y, Z)
OPERATING MODES: AUTOMATIC, MDI & MANUAL
DISPLAY MODES: PROGRAM CONTENTS, POSITION INFORMATION, PROGRAM CHECK, SETTINGS, PARAMETERS, TOOL DIAMETER COMPENSATION, ASSIST GAS STATUS, SELF DIAGNOSTICS
INTERLOCK DISPLAYS: WATER VOLUME, WATER TEMPERATURE, GAS PRESSURE, VACUUM LEAK, BLOWER MALFUNCTION, SHUTTER POWER, DISCHARGE, ASSIST GAS, DOOR OPEN
This machine is listed for sale by Fabricating Machinery Corp
located in Duarte, California
