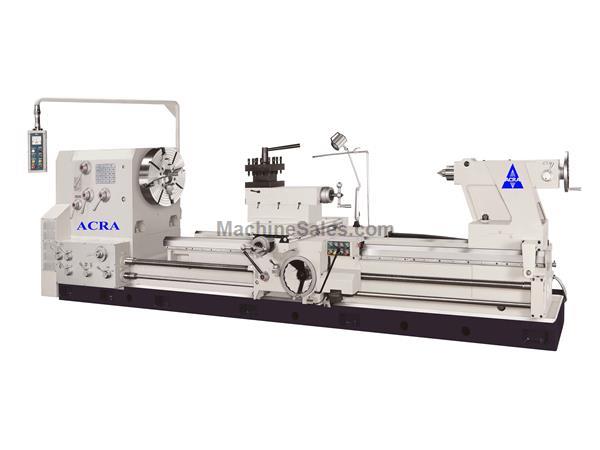

<p class="MsoNormal"><strong>65" X 400" ACRA MODEL 65400SHT PRECISION GAP BED HEAVY DUTY ENGINE LATHE</strong></p>
Gearbox:<br />&bull; The Gear Box is entirely enclosed construction and provide a range of feedings or thread cuttings (inch, metric, module pitch and diametrical pitch).<br />&bull; Inch and Metric threading without changing gears.<br />&bull; Oil both lubrication and built in safety clutch safeguards the continuous and proper operation of the universal gear box.<br /><br />Headstock:<br />&bull; The Spindle is supported by high precision bearings suitable for both heavy and precision cutting.<br />&bull; The speeds of spindle have 12 steps and designed on theoretical base. All gears and shafts are made of Ni-Cr-Mo steel and carbonize and ground.<br />&bull; Control of main drive through electromagnetic brake, and automatic forced lubrication.<br />&bull; Spindle Bore size wide selections-153 mm( 6&Prime; ), 230 mm( 9&Prime; ), 255 mm(1 0&Prime;), 310 mm(12&Prime;), 355 mm(14&Prime;), 405 mm(16&Prime;), 530 mm(21&Prime;).<br /><br />Carriage and Apron:<br />&bull; The Compound Rest can be fixed on the cross-side anywhere, convenient for cutting work application.<br />&bull; The Apron gives automatic lubrication and locked safety device protect threads and feeding.<br />&bull; Rapid Traverse drive for longitudinal-cross feeding and forward &amp; reverse feed are operates very light and convenient.<br /><br />Taper Attachment:<br />&bull; The Taper Attachment is designed to easily operate and rapidly cut taper in high accuracy; the device can produce &plusmn; 10 angles.<br />&bull; Electric cable in steel cover to protect wire from chips and prevent trouble with electric wires.<br /><br />Specifications:<br />Capacity:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 65&Prime;/86&Prime; x 400&Prime;<br />Swing Over Bed:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 65&Prime;<br />Swing Over Cross Slide:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;53&Prime;<br />Swing In Gap:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;86&Prime;<br />Width of Gap:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 22&Prime;<br />Distance Between Centers:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 400&Prime;<br />Bed Width:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;33&Prime;<br />Spindle Nose:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;A2-15<br />Spindle Bore:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 6&Prime;<br />Taper of Spindle:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;MT NO.6<br />Spindle Speeds &ndash; Range:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 3~300 RPM<br />Cross Slide Travel:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;31-1/2&Prime;<br />Compound Slide Travel:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;16-1/2&Prime;<br />Rapid Travel Speed to Carriage:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;80&Prime;/minute<br />Inch Threads:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 1/4 ~ 30 TPI<br />Metric Threads:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;1 ~ 120 mm<br />Module Threads:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;0.25 ~ 30 mm<br />Diametrical Threads:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;1 ~ 120 D.P.<br />Longitudinal Feeds:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;0.004&Prime; ~ 0.40&Prime;/rev<br />Cross Feeds:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 0.002&Prime; ~ 0.20&Prime;/rev<br />Tailstock:<br />&nbsp; &nbsp; &nbsp;Quill Diameter:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;6&Prime;<br />&nbsp; &nbsp; &nbsp;Quill Travel:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 13-3/8&Prime;<br />&nbsp; &nbsp; &nbsp;Quill Taper:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;MT NO.6<br />Spindle Drive Motor:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;40 HP<br />Voltage:&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;230V/460V AC /3 PH<br />Weight&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;58,160 lbs
<div>Dimensions&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;508 &times; 95 &times; 100 in</div>
<br /><br />Standard Equipment:<br />Steady Rest<br />Electromagnetic Brake<br />4-Way Rapid Traverse<br />Center Sleeve<br />Center (M.T.6#)<br />Tool Post Wrench<br />Anchor Bolt<br />Tool Box &amp; Tool<br />Coolant System<br />Halogen Light<br />
<p>&nbsp;</p>
<br />
<div>&nbsp;</div>

This machine is listed for sale by Blumberg Machinery located in Bannockburn, Illinois
