Tonnage

2200 metric-tons

Billet

8 inches

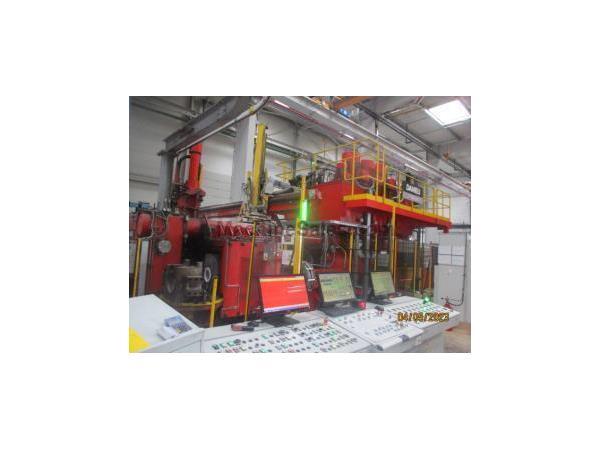

2200 MT DANIELLI BREDA ALUMINUM EXTRUSION PRESSStock # 14365TECHNICAL DATA 8’’ PRESSBRAND OF THE PRESS: BREDA DANIELLIYEAR OF START UP (BRAND NEW): 2016MAX EXTRUSION FORCE: 21,90MN at 300bMAX WORKING PRESSURE: 310barEXTRUSION SPEED MAX:- From 0 to 180bar 25mm/s- From 180bar to 315b 25 to 13mm/sDEAD CYCLE TIME- WITH SHORT BURP = 16s- WITH LONG BURB = 18sTYPE OF PRESS BACK LOADING WITH TWO CONTAINERSBILLET LENGTH- MAX BILLET LENGTH 1200mm- MIN BILLET LENGTH 300mm- MIN PIECE OF TWO PARTS 210mmMAIN PISTON DIAMETER 930mmSIDE CYLINDERS DIAMETER 180mmCONTAINER CYLINDERS 4 x 160 x S300mmBUTT SHEAR CYLINDER 150x110 x S600mmDIE CHANGE 2 CASSETTES 2 POSITIONS ROTOSTATIONVERTICAL BUTT SHEAR WITH BUTT EJECTORTOOLINGCONTAINER TOOL QTY= 2 INSTALLED QTY= 2 SPARECONTAINER BORE Diam 210mmHEATING 2 ZONES UP/DOWNPOWER TOTAL 40KwSTEM TOOL QTY=1 INSTALLED QTY=1 SPAREDUMMY BLOCK BAYONNET CASTOOL QTY=2TOOLING BOLSTER AND DIES EXCLUDED OF SALES SCOPEHYDRAULIC SYSTEM: TANK ASSEMBLY TYPE3 VERTICAL IMERGED MAIN VARIABLE FLOW PISTON PUMP REXROTH A4VSO250 HS5 1480RMP 110KW1 CONTAINER SEALING PISTON PUMP 300bar flow 36L/mn 15KW 1480RPM1 PILOT PUMP 140bar Flow 190L/mn 55Kw 1480RPM1 FILTERING PUMP 6bar Flow 500L/mn 11KW 2900RPMHYDRAULIC MANIFOLD WITH REXROTH CARTRIDGE AND REXROTH DISTRIBUTORSELECTRIC SYSTEMELECTRICAL CABINET WITH SOFT STARTERMAIN PULPITAUXILIARY PULPIT AT FRONT PLATENSPARE PARTS: SEE PHOTOS**Temporary Specifications Subject to Revisions****PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE****ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**

This machine is listed for sale by Machinery International Corp located in Woodbridge, Connecticut
