30" JONES & LAMSON MODEL: FC-30 OPTICAL COMPARATOR WITH QC 2000 DRO
****** 5X LENS ******
S/N: E-23094
SCREEN DIAMETER ................ 30"
SIZE OF WORKTABLE .............. 6" X 30"
TRAVEL OF WORK TABLE:
LONGITUDINAL ................. 8"
VERTICAL ..................... 5"
ANGULAR MEASURING CAPACITY ..... 360 DEG. CHART ROTATION
HELIX ANGLE ADJUSTMENT
(TABLE SWIVELS, L&R) ......... 15 DEG
CROSS TRAVEL FOR FOCUSING ...... 1- 3/8"
DISTANCE, LENS C/L TO TABLE:
MAXIMUM ...................... 8- 1/4"
MINIMUM ...................... 3- 1/4"
FLOOR SPACE (SMALL FOOTPRINT) .. 39"LR X 91"FB X 79"H
MACHINE WEIGHT ................. 2,500 LBS
EQUIPPED WITH:

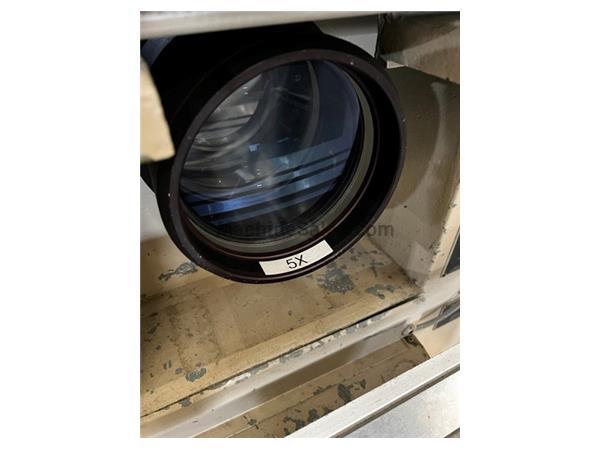

- JONES & LAMSON 5X LENS & CONDENSOR LENS
- POWER TABLE, LEFT TO RIGHT
- POWER TABLE UP & DOWN
- "QUADRA-CHEK 2000" DIGITAL READOUT & "ACU-RITE" GLASS
SCALES
SINGLE PHASE/115 VOLT ELECTRICS/35 AMPS
LAST CALIBRATED 06/04/2019 BY:
WILLRICH PRECISION INSTRUMENT CO., INC.
80 BROADWAY, CRESSKILL NJ 07626
(201) 567-1411
WILLRICH SERIAL NUMBER: 290627-1/DKJ0023
PASSED CALIBRATION: "YES"
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCEPTIONAL CONDITION & APPEARANCE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
