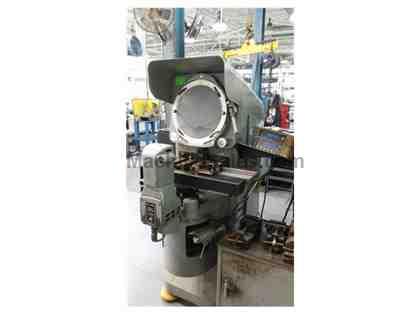

14" JONES & LAMSON OPTICAL COMPARATOR |
|
Stock Code: |
18309 |
Price: | $RFQ |
Subcategory: | Comparators |
Screen diameter: | 14" |
Year of Manufacture: |
1975 |
Manufacturer: |
Jones & Lamson |
Model: |
FC-14 |
Condition: | Used |
14" JONES & LAMSON OPTICAL COMPARATOR
MODEL FC-14
MANUFACTURED 1975
RACO Stock Number R018309
SCREEN DIAMETER ----------------------------------- 14"
TABLE SIZE ------------------------------------------- 6" X 30"
LENS HEIGHT ABOVE TABLE - ( MIN. ) ------------- 1/4"
LENS HEIGHT ABOVE TABLE - ( MAX. ) ------------ 5-1/4"
WORK CAPACITY ON CENTERS- ( MAX. DIA. ) ----- 5"
WORK CAPACITY ON CENTERS- ( MAX. LENGTH ) - 21-5/8"
MEASURING RANGE --------- ( LONG. ) ------------ 8"
MEASURING RANGE --------- ( VERTICAL ) -------- 5"
MEASURING RANGE --------- ( ANGULAR ) -------- +/- 180 DEG.
THROAT CLEARANCE -------------------------------- 15-1/2"
ELECTRICS ------------------------------------------- 110/1/60
EQUIPPED WITH ---
NOVALITE MERCURY ARC ILLUMINATION
SURFACE ILLUMINATION
POWER ELEVATION
2 AXIS QUICK CHEK DIGITAL READOUT
6 POSITION LENS TURRET WITH 5 LENSES, 10X, 20X,31.25X, 50X, 62.5X
CORRECTED IMAGE
ANGULAR MEASUREMENT
AUTOMATIC TABLE POSITION INDICATOR
TELECENTRIC STOP
TEMPORARY SPECIFICATIONS PENDING ARRIVAL
WEIGHT: 1400 LBS.
DIMENSIONS (IN.): 56 X 39 X 83
This machine is listed for sale by Raco Industrial Corporation
located in Des Plaines, Illinois
