21"X60" MAZAK SQT 300MY CNC 5-AXIS TURNING CENTER LATHE - $RFQ

Item Number: #00080079
21&quot;X60&quot; MAZAK SQT 300MY CNC 5-AXIS TURNING CENTER LATHE

21"X60" MAZAK SQT 300MY CNC 5-AXIS TURNING CENTER LATHE
Stock Code:  11261
Price: $RFQ
Subcategory:

CNC Turning Centers

Manufacturer:  Mazak
Model:  300MY
Condition: Used
Play YouTube Video

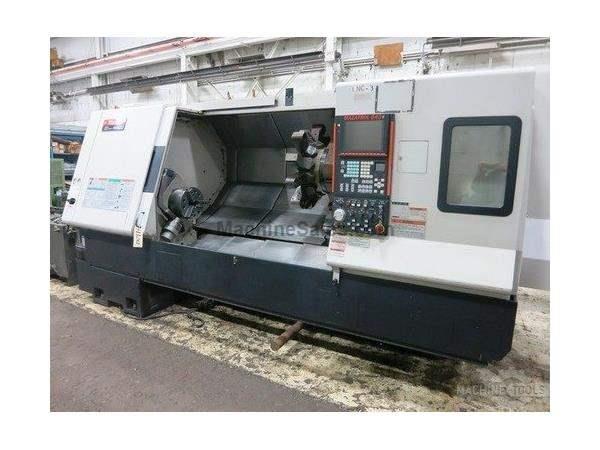

21"X60" MAZAK SQT 300MY CNC 5-AXIS TURNING CENTER LATHE WITH Y-AXIS AND LIVE TOOLING

General Specifications
Max. Swing 29.5"
Max.Cutting Diameter 20.87"
Max. Cutting Length 62.608"
Spindle Nose A2-8"
Spindle Bore 4.4"
Spindle Bar Capacity 4.0"
Spindle Speeds 6-4000 RPM
Turret Type 12 Position
Tool Size 1"x1"x6"
Turret Clamping Force 11,700 Lbs
Stroke of Turret:
X-Axis 10.125"
Z-Axis 63.25"
C-Axis .0001 Deg.
N/C Contour
Y-Axis +/- 3.00"
Rapid Traverse Rate X & Z 1181 IPM/984 IPM
Rapid Traverse Rate C & Y 555 RPM/59 IPM
Milling Spindle Speed 4000 RPM
Milling Spinlde 10 HP
Tailstock Control Fully Programable
Tailstock Quill Dia. 3.94"
Tailstock Center MT #5 Stroke of Tail Body 17.875" Main Motor 35/30 HP AC Machine Weight (approx) 18,600 Lbs.

Motor Specifications
Not Available

Equipped With
Mazatrol Fusion 640T CNC Conversational Control
Automatic Tool Eye
12" 3-Jaw Hydraulic Chuck
Coolant System
2 Rotary Tools
Chip Conveyor & Misc. Tool Holders


Serial Number
177156 Year
2004 Location
ON LOCATION
