CALL FOR AVAILABILITY

FEATURES:

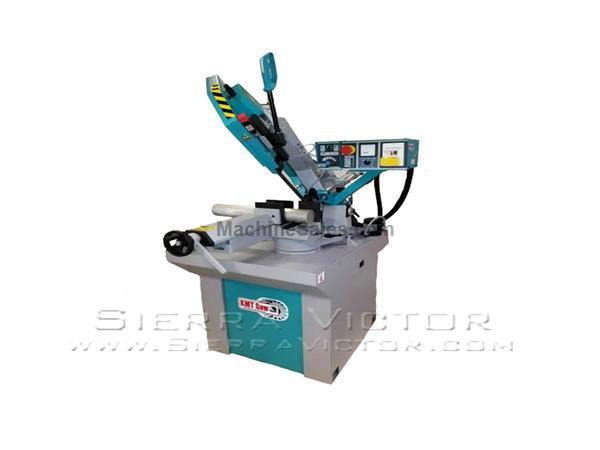

The H310 U & H310 U-V is a gravity feed autocut bandsaw capable of mitering 60 degrees to the right.
The saw is offered in two versions, 2 Speed and variable speed.
The cycle start button is located in the trigger switch for safety.
The blade will turn off at the end of the cut. The solenoid will hold the saw frame where lifted. The Autocut will insure that each cut is feed exactly at the same rate, eliminating the need to open and close the valve each cut.
The vise is easily open and closed with handwheel, quick handle is included for repetitive cuts.
Easy operator controls
Large easy to read scale ensures accurate miters
Carbide guides w/ rollers
Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day. (see chart in pictures)

STANDARD EQUIPMENT:
One Bi-metal saw blade
Low voltage control
TEFC 3 phase drive motor
Totally enclosed worm gear transmission
Full Coolant System
Full Blade Guarding
Operators Manual Parts List/Schematics
Tool kit

SPECIFICATIONS:
Capacity
Round
0°: 10"
45°: 8-1/4"
60°: 5-1/4"

Square
0°: 9-1/2"
45°: 7-1/2"
60°: 4-1/4"

Rectangle
0°: 7" x 11"
45°: 6-1/4" x 7-3/4"
60°: 3-3/4" x 5"

Vise Opening: 12"
Motor: 2 HP
Electrics: 2sp, 220v/1 220v/3 (please specify)
FPM: VS 60-360
Work Height: 37"
Dimensions (W x L): 33" x 55"
Weight: 750 lbs.

OPTIONAL ITEMS:
AC200 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
AC102 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103 Additional 6' connecting to AC102

OPTIONAL MODELS:
H310U

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

This machine is listed for sale by Sierra Victor Industries located in Port Orange, Florida
