Rect-Cap (H)

20 inches

Rect-Cap (W)

20 inches

Rounds-Cap

20 inches

Power

10 horsepower

Type (Auto, Manual, Semi)

automatic

Blade Width

2 inches

Dimensions

140" x 95" x 94"

Weight

12500 pounds

Max Table Load

15000 pounds

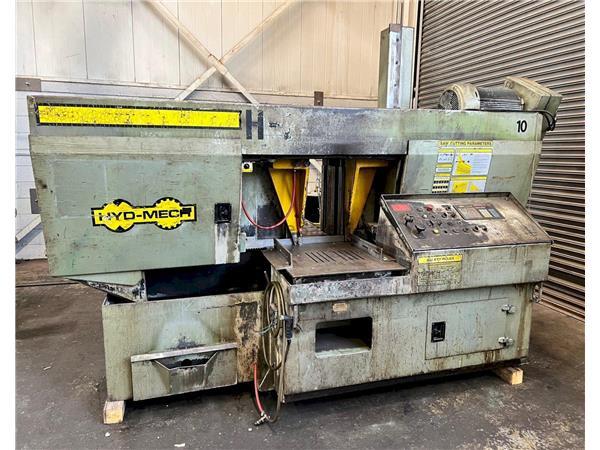

Brand: Hyd-MechModel: H-20ASpecifications:Max. cutting cap. 90 deg, round: 20
Max. cutting cap. 90 deg, square: 20
x 20
Blade dimensions: 22’2
x 2
x .063Blade guides: CarbideGuide arm (manual / powered): PoweredBlade speeds: 40-300 FPMNumber of speeds: InfiniteBlade motor: 10 HPBlade drive type: Motor to gearboxBlade tension type: PoweredBlade wheel size: 27
Hydraulic motor: 3 HPHydraulic Tank Capacity: 9 gallonsCoolant type: FloodCoolant tank capacity: 10.5 gallonsMaximum feed length: 36
Number of multi indexes: InfiniteTable height: 31
Maximum weight load: 15,000 lbsVise type: HydraulicVoltage: 220 / 440 volt 3 phaseDimensions: 140
x 95
x 94
Weight: 12,500 lbsEquipped with:PLC100 Control - holds up to 29 jobs with length & piece counter and the ability to run up to 9 jobs in queue with blade speed readoutManual / automatic modeHead height limit switch settingBlade break switchCoolant wash down hosePowered blade speed changeCarbide guidesFlood coolantPowered blade chip brushHydraulic chip augerPositive downfeedWe put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.

This machine is listed for sale by Westbrook Engineering located in Warren, Michigan
