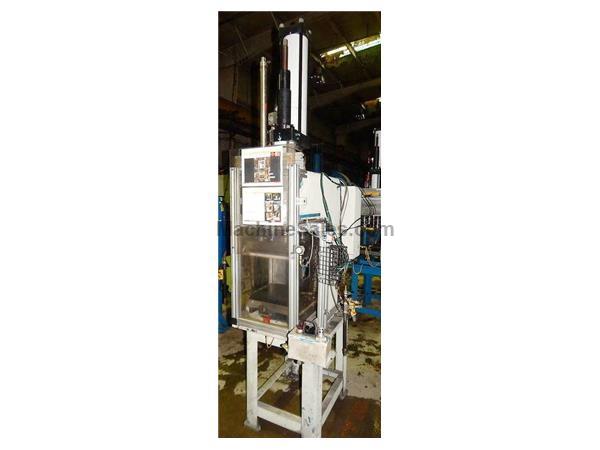

16 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

 Serial Number: A2363
 SPECIFICATIONS:

 This is a Multipling type Air over Oil Press

       C-Frame Design

       Tonnage:  16 Ton

       Stroke:  7.9" (adjustable), the last .79" Power Stroke
       Daylight Opening:  13"
       Bed & Ram:  14" x 14" x 2" Thick

       Force in Approach Stroke:  1,260 lbs
       Force in Retract Stroke:  1,260 lbs
       Force in Power Stroke:  16 ton (US)

       Pass Line, Floor to Top of Bed:  40"

 NOTE: Full Factory Support through Schmidt Presses, Cranberry, PA

 OVERALL DIMENSIONS:  34" LR x 50" FB x 125" High

This machine is listed for sale by D&D Industries located in Monclova, Ohio
