ORDER

90

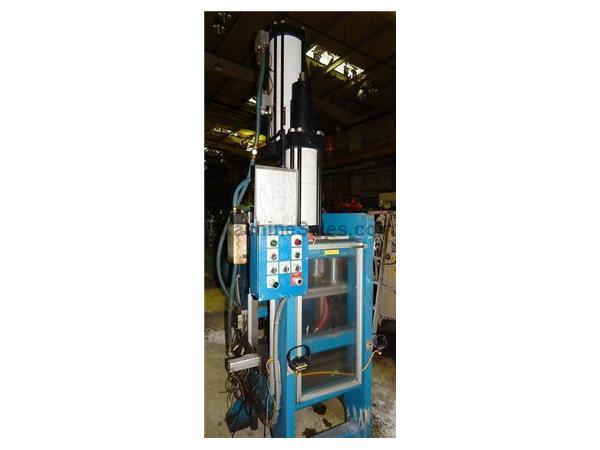

90 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

 Serial Number: 2750
 SPECIFICATIONS:

 This is a Multipling type Air over Oil Press
 See: http://farger-joosten.de

 NOTE: Will Sell Either Power Unit on the Mounting Plate with a
 Four Post Guided Ram or Everything at the same Price.  We will
 Remove, Pack, and Protect the Power Unit for Shipping

       Housing Style Press with a 4 Post Guided Ram

       Built for Side to Side Feed

       Tonnage:  84 Tons

       Stroke:  7.9" (adjustable), the last .79" Power Stroke
       Daylight Opening:  26"
       Bed:  24" LR x 17" FB x 2" Thick
       Ram:  24" LR x 17" FB x 2-1/2" Thick

       Force in Approach Stroke:  3,911 lbs
       Force in Retract Stroke:  3,664 lbs
       Force in Power Stroke:  84 ton (US)

       Pass Line, Floor to Top of Bed:  24"
       Windows, Both Sides, On Center of Bed:  18"
       Side Frame, Thickness:  2"
       Distance Inside Side Frames:  20"

 NOTE: Power Unit is Fully Supported through Schmidt Presses,
 Cranberry, PA

 OVERALL DIMENSIONS:  36" LR x 54" FB x 132" High

This machine is listed for sale by D&D Industries located in Monclova, Ohio
